A.R.ELECTRONIQUE - EUROPEAN FREQUENCY AND TIME
FORUM -
14-16 MARCH 2000 -
TORINO - ITALY
HIGH STABILITY 10 MHz OCXO
NEW DESIGN IMPROVING PERFORMANCE vs SIZE
AND COST RATIOS
E. GIRARDET, P. CAPPELLE
A.R.ELECTRONIQUE F-25048 BESANÇON
B. WOLCOFF
A.R.ELECTRONIQUE F-78500 SARTROUVILLE
1- ABSTRACT
During the last few years, different papers have been presented,
showing either 10 MHz ultra stable oscillators, stability class of a few 10-11,
short term of some 10-13, or miniaturized, SMD versions, with a class
of stability of a few 10-8.
A.R.Electronique has investigated in an alternative way which
takes place between these products and consists in providing high stability,
very low phase noise in low size enclosures, combined with a very efficient
performance versus cost ratio.
This concept is based on the use of A.R.Electronique designed,
SC cut resonators (HC-53/U or TO-8, 4 points enclosure), associated with a very
low noise electronic. The thermal regulation is done with a single oven, low
size. This principle has been derivated in two versions :
The miniature JUMBOSTAR-FB family offers a class of stability
of a few 10-9, short term lower than 8.10-13 / 1s, low
phase noise, in a 27 x 36 x 16 mm package.
The PULSAR-SL family reaches short term stability better than
5.10-13/ 1s, very low phase noise, associated with temperature stability
of a few 10-10, in a very low profile case 41 x 51 x 20 mm.
The same concept has been used for ruggerized versions devoted
to airborne applications (civil / military), with low g sensitivity resonators.
These oscillators give very fast warm-up and low phase noise under vibration.
The paper will briefly describe the electronic, thermal and
mechanical designs.
The main electrical characteristics and frequency stability
will be given and placed in regard with other actual products.
Special developments and characterizations for particular
applications will be also presented.
2- INTRODUCTION
Placed between the miniature, SMD or not, OCXO’s with limited
characteristics and very high stability, high volume, expensive OCXO’s, the
last generation of A.R.Electronique oscillators have been designed for the optimization
of three criterias : stability-size-cost.
TABLE [1] : TECHNICAL CHARACTERISTICS
PARAMETER
|
SMD OCXO
|
STD OCXO
JUMBOSTAR
|
JUMBOSTAR-FB
|
PULSAR-SL
|
USO (GROUND)
|
Freq. vs Temperature (-20,+70)°C
|
+/-1.10-8
+/-5.10-8
|
+/-1.10-8
+/-2.10-8
|
+/-2.10-9
+/-1.10-8
|
+/-2.10-10
+/-1.10-9
|
+/-5.10-11
+/-5.10-10
|
Aging /
month
|
+/-5.10-9
+/-1.10-8
|
+/-5.10-9
+/-1.10-8
|
+/-3.10-9
+/-1.10-8
|
+/-2.10-9
+/-5.10-9
|
+/-6.10-10
+/-4.10-9
|
Retrace
(24 hours turn off, 60 min.
after turn on)
|
N.S.
|
+/-3.10-9
|
+/-3.10-9
|
+/-2.10-9
|
+/-2.10-9
|
Phase noise L(F) (dBc / Hz) 1 Hz
10 Hz
100 Hz
|
N.S.
|
-100
-130
-145
|
-105
-133
-155
|
-110
-138
-156
|
-110
-138
-157
|
S.T.S. (Allan Variance) 1s
10s
|
N.S.
N.S.
|
|
8.10-13
1.10-12
|
5.10-13
7.10-13
|
N.S.
5.10-13
|
Voltage sensitivity (Vcc+/-5%)
Load sensitivity (50 Ohms +/-
10%)
|
N.S.
|
+/-2.10-9
+/-5.10-9
|
+/-5.10-10
+/-5.10-10
|
+/-5.10-11
+/-5.10-11
|
+/-5.10-11
+/-5.10-11
|
Frequency start-up (+25°C) +/- 1.10-8
|
N.S.
|
3 min
|
3 min
|
3 min
|
15 min
|
Power consumption (turn on
/ steady state)
|
5W / 1W
|
3W / 1W
|
3W / 1,3W
|
6,6W / 1,7W
|
8W / 2,5W
|
Size (mm)
Volume (cm3)
|
25 x 22 x 14
8
|
27 x 36 x 16
15
|
27 x 36 x 16
15
|
41 x 51 x 20
40
|
60 x 67 x 40
160
|
Avionic versions
|
|
YES
|
YES
|
YES
|
|
They are destinated for the new applications in the telecommunication
fields, digital broadcast, TTNC, GPS receivers, instrumentation, where the continuous
evolution of performances (transmission rate speed, precision of localization…)
requires the use of high stability frequency sources, together with miniature
size (low profile) and reasonable price.
This last oscillator’s design has been declined in two families
offering complementary classes of stability (JUMBOSTAR-FB, PULSAR-SL). Specific
versions for hardened environmental conditions (civil and military avionic)
have been also developped. This concept was also characterized, as preliminary
investigation, under specific space environment (vacuum).
2- CHARACTERISTICS REQUIREMENTS
In order to precise the technical context of this study, the table
[1] shows the main electrical and mechanical characteristics of these oscillators,
in comparison with the related existing families.
3- DESIGN – TECHNICAL CONCEPT
The technical requirements have directly involved some technological
choices concerning the crystal resonator, the oscillator’s design, as well as
the mechanical structure and the thermal control.
3.1- Quartz resonator :
The 10 MHz nominal frequency is well adapted for the majority
of the expected needs. Based on SC cut crystals, 3rd overtone, this
frequency range allows to reach a best compromise for stability rate, size and
manufacturing costs.
The geometrical blanks design is optimized in order to reduce
the complex lapping phases.
The housing in HC-53/U or low profile, T08 enclosure, 4 points
mounting is well adapted for the reduction of the oven volume, and consequently
of the whole oscillator’s size.
The crystal manufacturing process includes stabilization cycles
as well as computer characterized pre-aging tests, according with adapted high
temperature profiles that have been optimized during this study.
The levels of achieved characteristics for this type of crystal
are shown in the following chapters.
These measurements have been performed on the whole oscillators.
The 10 MHz range resonators can be used within a larger frequency
scale, through a multiplication or a division of the oscillator’s frequency.
However, it will induce a phase noise degradation on the final frequency (20
log N factor for multiplication, noise contribution due to the logic IC’s for
division).
For very special requirements, the need of a direct, lower
frequency resonator can be planed (typically 5 MHz, SC cut, 3rd O.T.).
The fundamental concepts of these oscillators can be used, with some restrictions
due to the crystal enclosure size (minimum oscillator’s height of 25mm).
3.2- Electronic circuitry :
The high level of expected characteristics for phase noise,
short term stability (Allan Variance) requires the use of low noise components
with optimized bias points. This approach eliminates the use of full integrated,
ASIC oscillators.
The oscillator is a colpitts types slightly modified. The
peripheral functions (insulation and amplifier stages, voltage regulators) have
been specially designed, in order to reduce both phase noise and frequency stability
contributions : supply voltage sensitivity, load sensitivity, as well as
long term stability, thermal behavior.
3.3- Thermo-mechanical structure :
The mechanical design is involved by the expecting size and
costs requirements. The internal structure is centered around the oven, which
is optimized for the crystal resonator’s thermal regulation. For the JUMBOSTAR-FB
family, the sensitive electronic functions are pseudo-temperature regulated.
This regulation is more precise for the PULSAR-SL versions, where the size criterions
are not so severe. A special effort has been made for minimizing the number
of the mechanical components.
These mechanical structures have been also declined for hardened
versions, adapted to avionic requirements (larger temperature ranges, vibrations,
shock). In that case, the optimization of the mechanical behavior under vibration
modifies the thermal insulation of the oven, which degrades the consumption.
The start-up speed, which is an important requirement for these products, will
require a significative increasement of the oven power after turn-on.
3.4- Electronic temperature control :
The final thermal regulation of the oven is function of the
mechanical structure as well as the associated electronic circuitry. The single
oven solution has been choosen : a double oven concept is greatly unfavourable
for global size, adjustment processes and reliability.
The control circuit is fully integrated (ASIC), except the
temperature sensor and the power heating elements. Beyond the obtention of high
regulation rates for low temperature slopes (<1°C/min.), the thermal design
has taken into account the response to fast temperature steps : these kinds
of OCXO’s are normally working under very low temperature gradient. However,
they have to keep their stability under accidental disturbances (typically,
delocked PLL after the opening of a rack system).
For the derived avionic versions, the internal temperature
gradient effect (ITGE) has to be characterized. It corresponds to the overall
frequency shift due to the variation of the OCXO’s geometrical orientation.
The table [2] shows the intrinsec thermal behavior of the different
oscillator’s families.
These characterizations are made by measurement of the b mode
frequency of the SC cut resonators (linear slope of –30ppm/°C).
For evaluation, some probe tests have been realized under vaccum
(pressure < 10-5 torr), for space applications.
Table 2 : THERMAL REGULATION
OCXO
|
TEMP.REGULATION
(ext. DT = 100°C)
|
Type
|
Volume (cm3)
|
Height
(mm)
|
Quartz
|
Oscillator
|
JUMBO-FB
|
15
|
16
|
<0,2°C
|
<3°C
|
PULSAR-SL
|
40
|
20
|
<0,1°C
|
<1°C
|
JUMBO-S
|
15
|
16
|
<0,2°C
|
<5°C
|
PULSAR-EM
|
52
|
25
|
<0,1°C
|
<2°C
|
4- MEASUREMENT RESULTS
The most significative measurements are now shown and discussed.
For general datas, please refer to table [1].
4.1- Long term stability

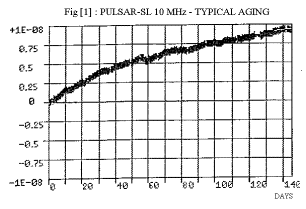

The aging is measured 2 times per day over 20 to 90 days (automatic
bench). Fig [1] is a typical curve.
Statistical results on a batch of 100p are shown on fig [2]
(after 21 days) and [3] (after 60 days).
4.2- Frequency vs temperature
For very precise requirements, this characteristic is performed
with a complete temperature cycle (+25, -20, +60, +25°C, 0,5°C/min, 400 min)
(fig [4]).
The similar test have been applied as preliminary experimentation
under vacuum, without any change with the standard version (fig [5]).
Fig [6] shows the frequency response to a temperature step
of +/-35°C (temp. slope of 1°C/sec.).
Fig (7] characterizes the I.T.G.E. test. Both temperature
and g sensitivity effects are simultaneously taken into account.
4.3- Start-up

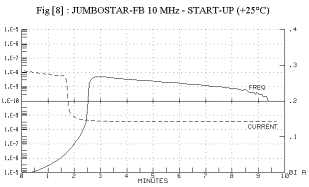

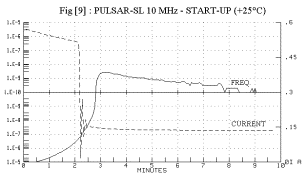

The thermal design combined with the intrinsec SC cut characteristics
offer a very short stabilization time for both frequency and consumption (fig
[8], [9]).
4.4- Retrace
The retrace behavior is mainly dependant of the quartz resonator,

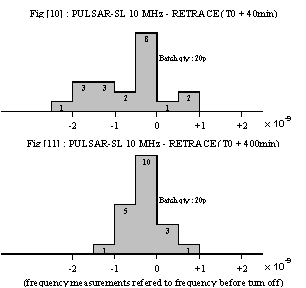

as well as the test profile. Fig [10], [11] give statistical results on 20 pieces,
40 and 400 min after turn on (24 hours turn off at +25°C).
4.5- Phase noise
This parameter has been particularly optimized during the study.
Fig [12] shows a typical curve (PULSAR-SL).
The JUMBOSTAR-FB is slightly degraded (see table [1]), because
of some electronic simplifications due to the size.
4.6- Short term stability
The Allan Variance is measured in the time domain by comparison
with a reference USO (fig [13]).
This measurement can be also derivated from the phase noise
curve, after frequency versus time domain conversion.
5- CONCLUSION
Initially designed for specific applications, these families
of compact, high stability, low noise oscillators are now completely qualified.
Their modular structures are well adapted for complementary developments where
size and high performance criteria are critical.
REFERENCES
[1] B.Wolcoff, E.Girardet
High stability, miniature OCXO’s for severe environmental conditions.
EFTF – IEEE, 1999
[2] J.Rutman, J.Groslambert
Characterization and measurement of frequency stability.
EFTF – 1990
[3] Identification and measurement of different types of noises
present in a frequency source.
F.Vernotte, J.Groslambert, J.J.Gagnepain,
|
